GE Logiq e Ultrasound Machine

ge voluson p8 ultrasound machine

The GE Logiq e portable ultrasound is the portable version of the GE Logiq series and is an excellent choice for general radiology.



pdf icon small GE Logiq e Ultrasound Brochure



The GE Logiq e portable ultrasound is the upgrade to the older Logibook system and features a larger display and more powerful hardware. The GE Logiq e portable ultrasound is a versatile ultrasound system with capabilities comparable to that of a full size console unit.



GE Logiq e Ultrasound Applications:
Musculoskeletal [MSK]
Vascular
Abdominal
Small Parts
Breast Imaging
Urology
Pediatric
Neonatal
Ob/Gyn
Cardiac



GE Logiq e Ultrasound Features:
15" LCD Monitor
ATO [Automatic Tissue Optimization]
Raw data processing
Anatomical M-Mode

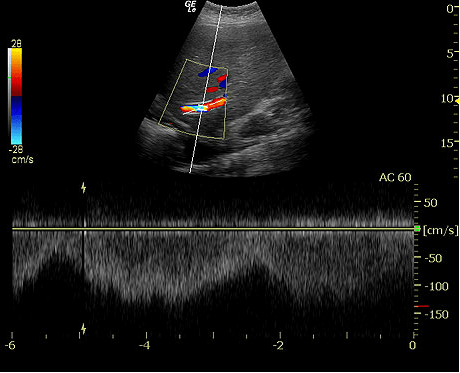

PW Doppler
CW Doppler,
Tissue Harmonics
On-board patient data management
ComfortScan
SmartScan
TruAccess
Advanced Image compare
Image archiving
CINE loop
80GB HD
CD-RW
2 USB ports
Wireless LAN image transfer



GE Logiq e Ultrasound Options:
DICOM
Speckle Reduction Imaging [SRI]
CrossXBeam
Freehand 3D
CW Doppler

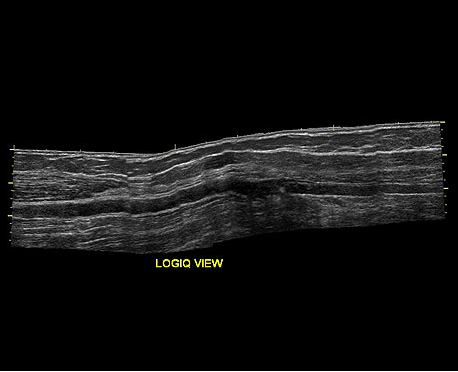

LogiqView
ECG Module



GE Logiq e Ultrasound Transducers / Probes:
GE 4C-RS Convex probe [2-5 mhz] Abdominal, Ob/Gyn, Urology
GE 8L-RS Linear probe [4-12 mhz] Small Parts, Vascular, Neonatal, Pediatric
GE 3S-RS Phased array probe [1.5-4 mhz] Cardiac, Abdomen, OB Gyn, Urology
GE E8C-RS Microconvex endocavity probe [4-10 mhz] OB, Gyn, Urology, Endocavity
GE 8C-RS Microconvex [4-10 mhz] Pediatric
GE 12L-RS Linear probe [5-13 mhz] Vascular, Small Parts, Neonatal, Pediatrics
GE i12L-RS Intraoperative linear probe [4-10 mhz] Vascular, Small Parts Intra-operative
