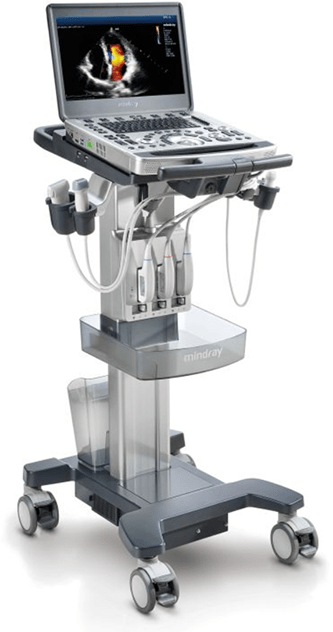

Mindray M9 Ultrasound Machine

ge voluson p8 ultrasound machine

The Mindray M9 with advanced signal transmission and reception processors provides highly sensitive and accurate echo detection.



pdf icon small Mindray M9 Ultrasound Brochure



Mindray M9 Features and Specifications


3T Transducer Technology with Single Crystal

Providing sharper images, all probes compatible with the M9 come equipped with Mindray’s unique 3T transducer technology. Enhanced with the addition of single crystal technology, M9 offers better penetration and color dynamic flow, especially during difficult-patient scanning.

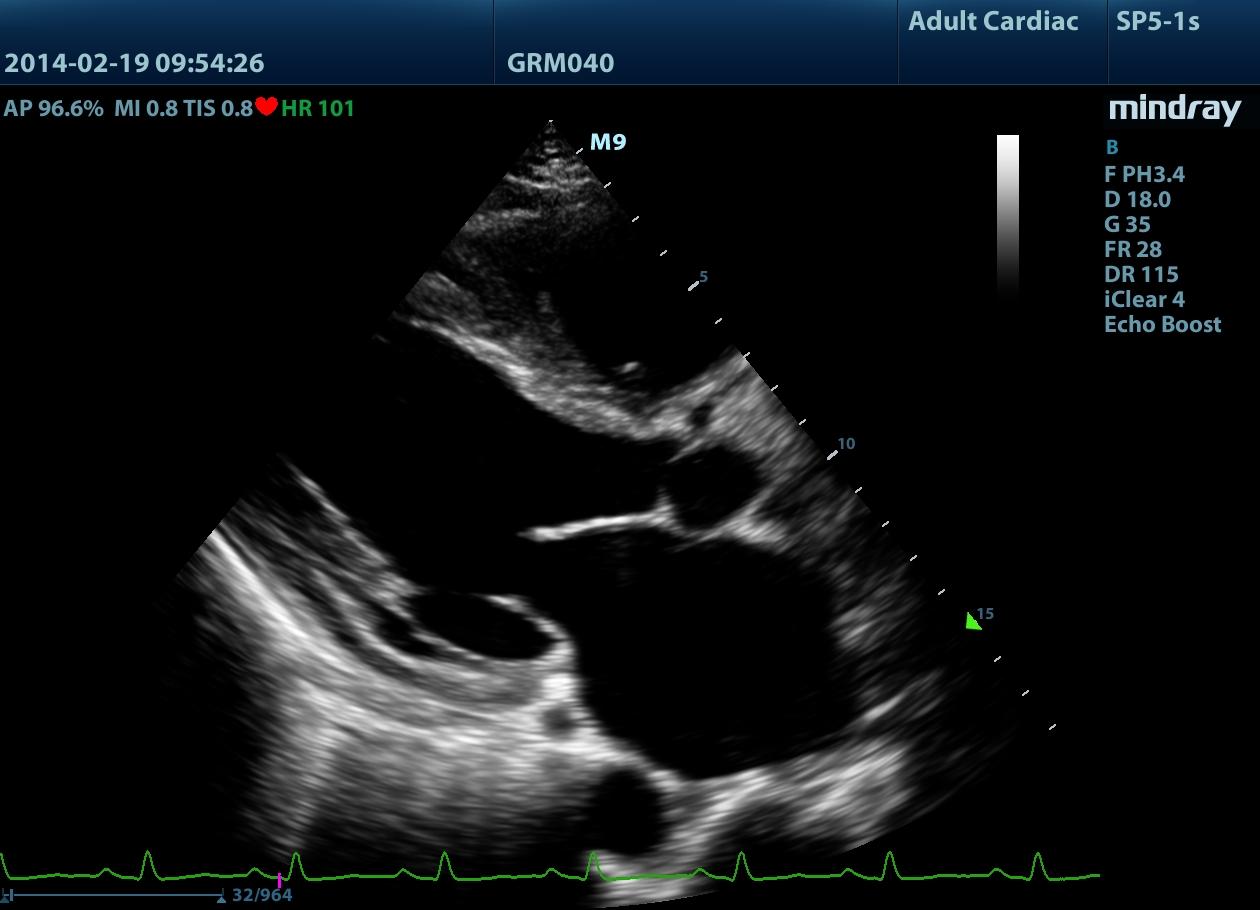

Echo Boost™

Mindray’s unique adaptive signal processing technology with intelligent echo detection, designed to utilize the native signal-to-noise information to enhance the weak echo signals while suppressing the surrounding clutter noise, providing more balanced image brightness and improved visualization of myocardium tissue layers.

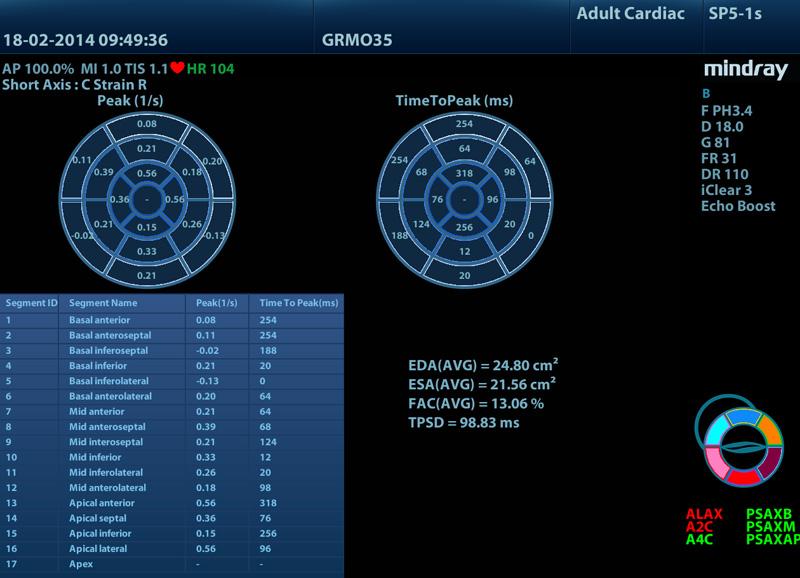

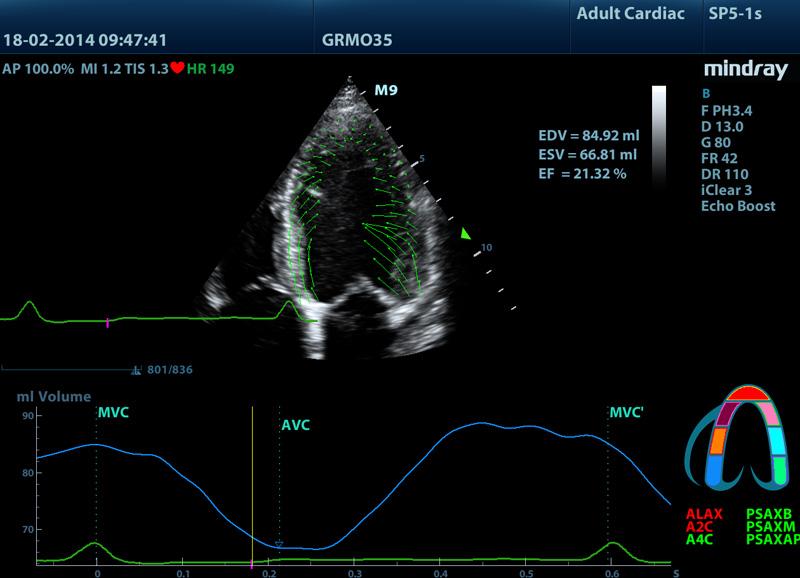

Tissue Tracking with Quantitative Analysis

The TT QA functionality on M9 allows for a simple, quick and non-invasive solution for the evaluation of left ventricular wall motion abnormalities. Supported by Mindray’s patented 3T technology with single crystal, M9 significantly improves the tracking accuracy and effectiveness, controlling the image drift caused by the probe movement and respiration. With the added unique benefit of on-site analyses, the TT QA on M9 can be performed at the bed side, saving time and making complicated diagnoses much simpler.



LVO with Stress Echocardiography

M9’s premium capabilities allow for LV opacification during stress, enhancing discrimination between myocardial tissue and blood pool, providing better visualization of the endocardial surface. Stress Echo feature on M9 includes a complete package for pharmacological stress and exercise stress echo. The package is supported by a flexible reporting system that can be optimized for your individualistic needs.



PSHI™ (Phase Shift Harmonic Imaging)

Purified Harmonic Imaging for better contrast resolution providing clearer images with excellent resolution and less noise



Tissue Harmonic Imaging (THI)

Utilizing second harmonics generated from tissue boundary layers, THI significantly enhances contrast resolution and improves image quality especially for technically difficult subjects.



Tissue Specific Imaging (TSI)

Tissue Specific Imaging optimizes the image quality based on the properties of the tissue being scanned. Four imaging options are available including general, muscle, fluid and fat.

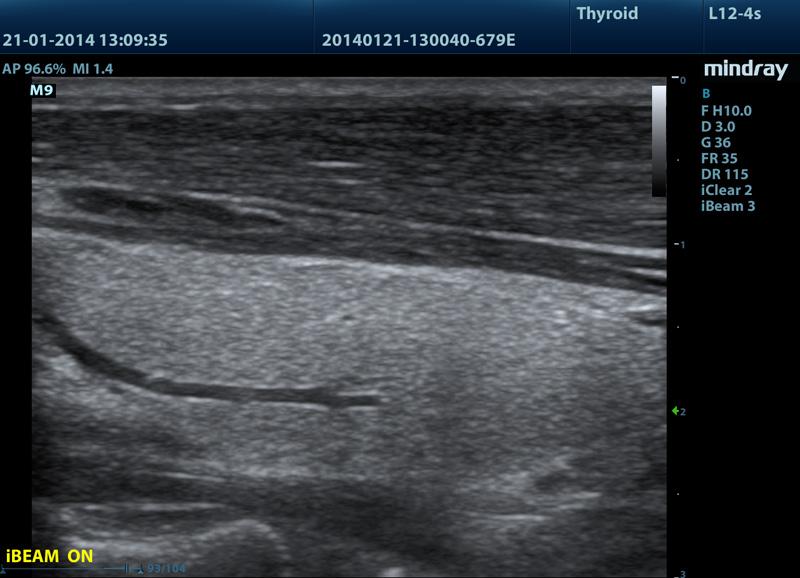

iBeam™

Permits use of multiple scanned angles to form a single image, resulting in enhanced contrast resolution and improved visualization



iClear

Gain improved image quality based on auto structure detection

• Sharper & Continuous Edges

• Smooth Uniform Tissues

• Cleaner ‘no echo areas



Echo-enriched Beam Forming

Echo-enriched beam former permits the use of traditionally neglected echo signals of adjacent beams to form one finer and stronger imaging beam, providing better ‘out-of-focus’ image resolution and deeper image penetration.



Multi-Beam Formation

Maximum 12 times tasking for one transmitted beam, resulting in excellent time resolution and higher frame rate.

Software Options


Continuous Wave Doppler HW Module (Included with Advanced Configuration.)
Free Xros M™ (Anatomical M-mode) (Included with Advanced Configuration.)
Tissue Tracking with Quantitative Analysis (Strain/Strain Rate)
TDI (Tissue Doppler Imaging, includes TVI, TEI, TVD and TVM) (Included with Advanced Configuration.)
Free Xros CM™ (Curved Anatomical M-Mode, TDI should be configured at the same time )
TDI Quantification Analysis Software (TDI should be configured at the same time)
Stress Echo (Included with Advanced Configuration.)
LVO Contrast (Left Ventricle Opacification Contrast, available on SP5-1s)

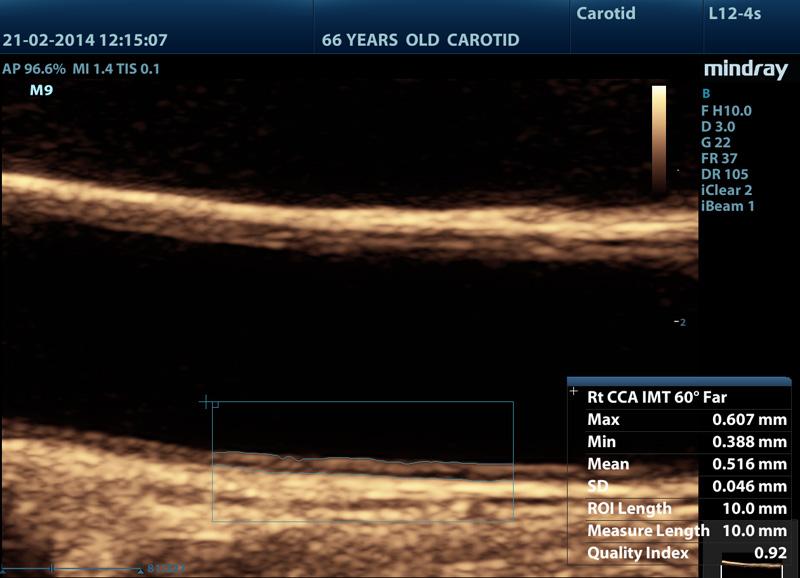

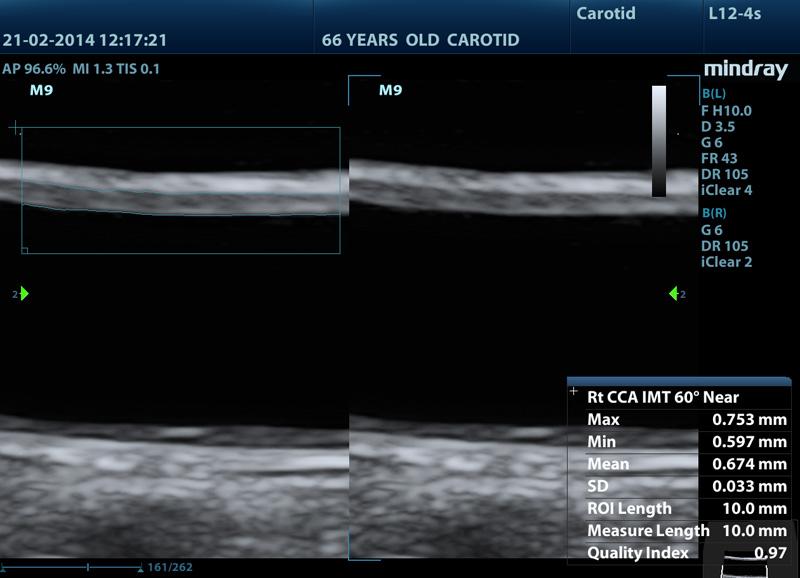

Auto IMT Package (Automatic measurement for Intima-Media Thickness, Vascular Package should be configured at the same time)

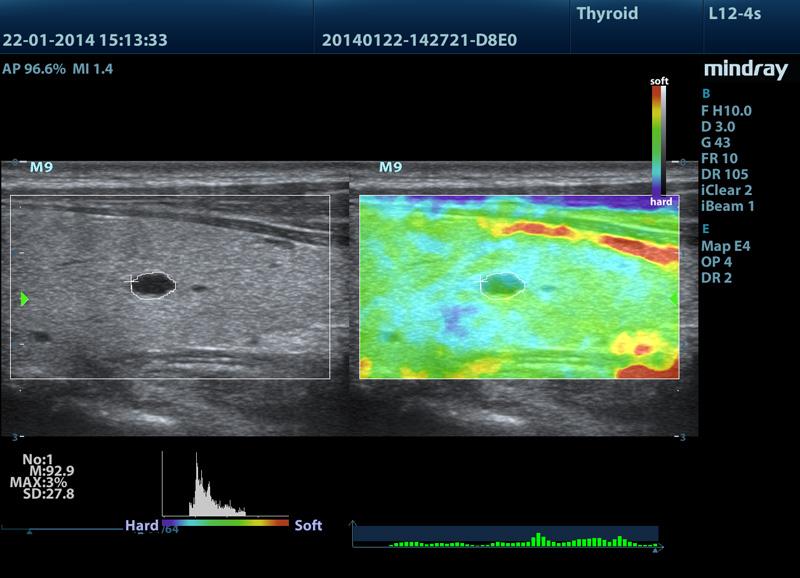

Elastography (available on L12-4s, L14-6Ns)

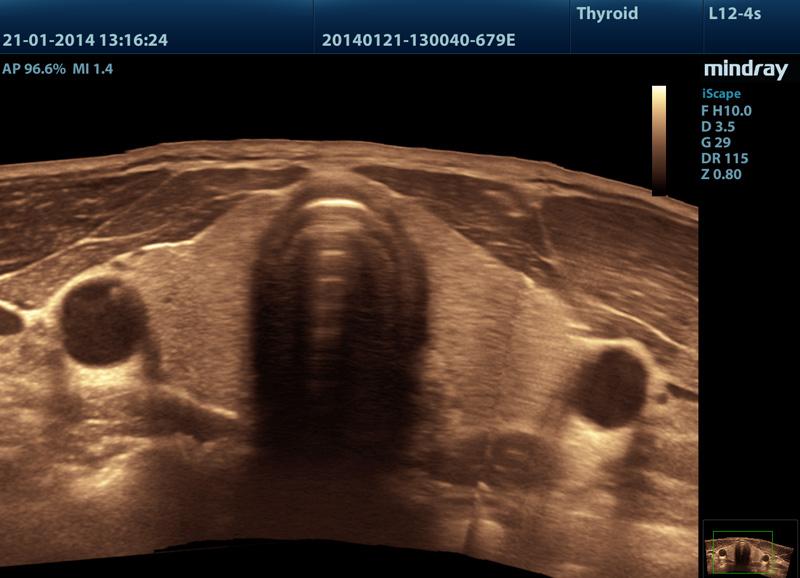

iScape™ View (Real-time Panoramic Imaging)
iNeedle™ (Needle Visualization Enhancement)
iWorks™ (Standardized Workflow Protocol)
Smart NT (automatic calculation of Nuchal Translucency, Obstetrics package should be configured at the same time)
Smart OB™ (automatic measurements for BPD, FL, HC, AC and OFD, Obstetrics package should be configured at the same time)

DICOM Options


DICOM Package includes:


DICOM Basic (Included with Advanced Configuration-pn 110-002629-00)
DICOM/HL7 Worklist (Included with Advanced Configuration-pn 110-002630-00)
DICOM MPPS (pn 110-002631-00)
DICOM Query/Retrieve (Included with Advanced Configuration-pn 110-002635-00)
DICOM Basic (Included with Advanced Configuration)
DICOM/HL7 Worklist (Included with Advanced Configuration)
DICOM MPPS
DICOM Query/Retrieve (Included with Advanced Configuration)
DICOM OB/GYN S/R
DICOM Vascular S/R (Included with Advanced Configuration.)
DICOM Cardiac S/R (Included with Advanced Configuration.)
DICOM Breast S/R



Mindray M9 Transducers and Needle Guides

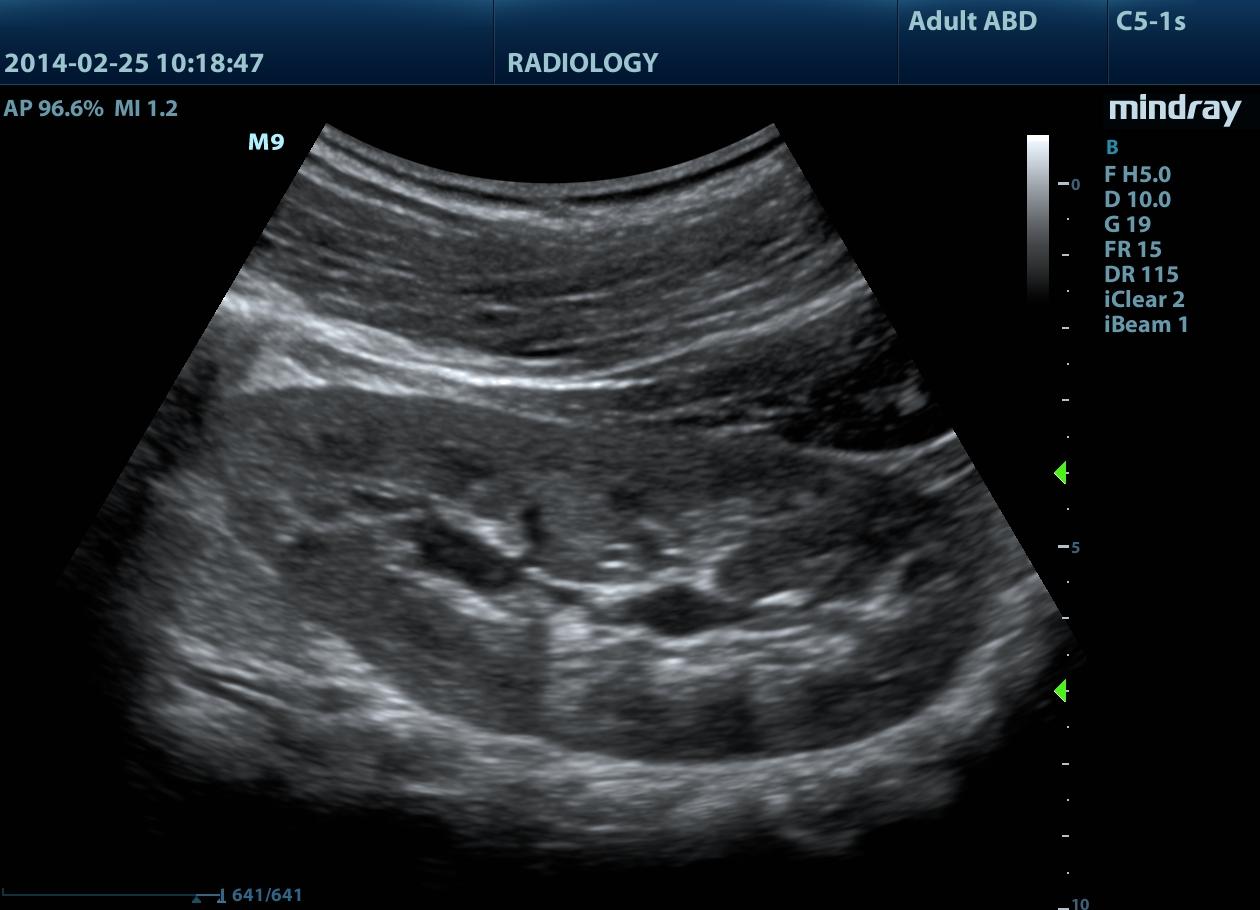

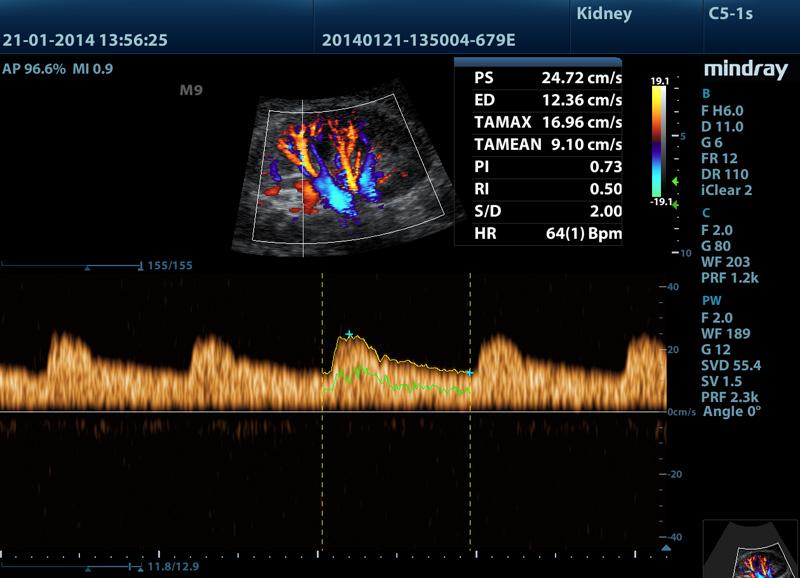

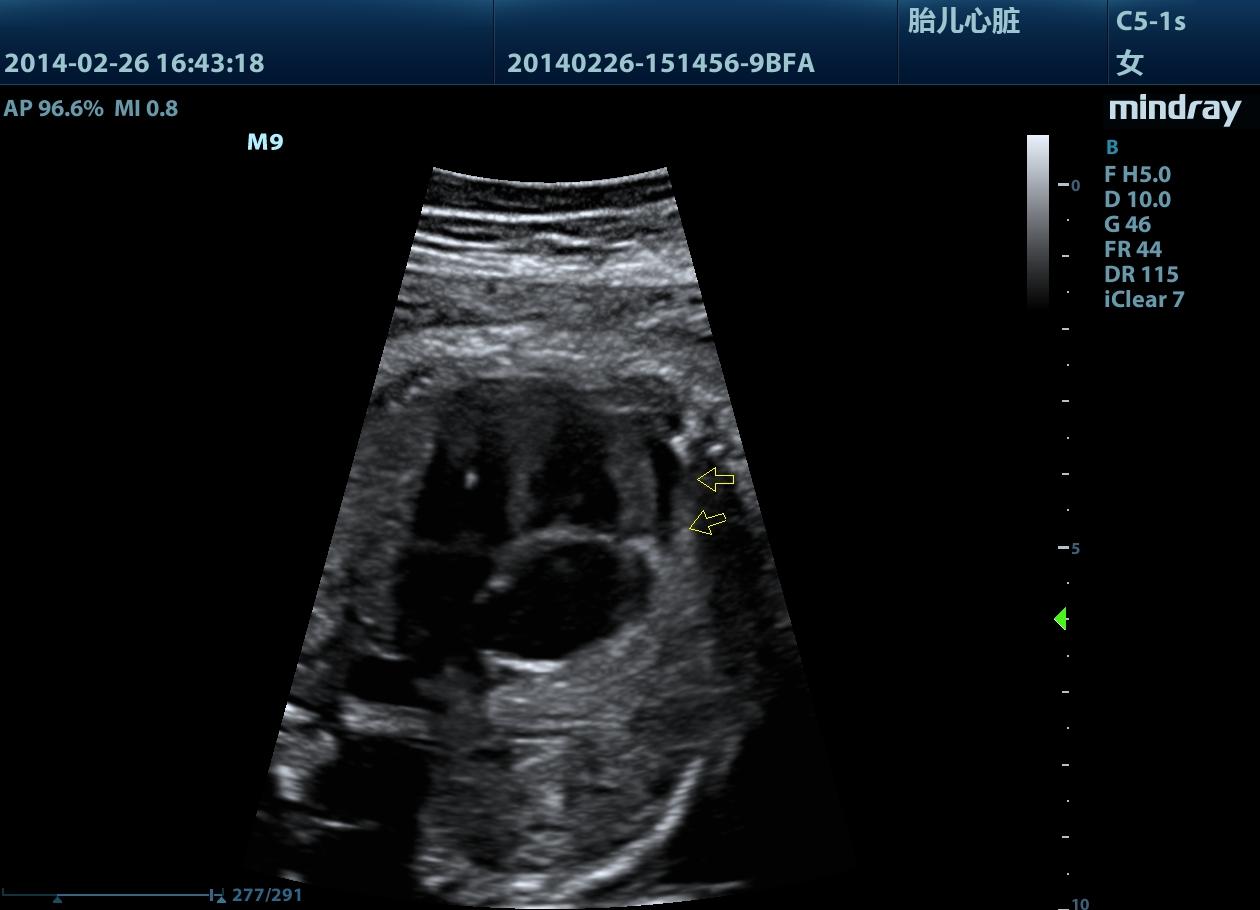

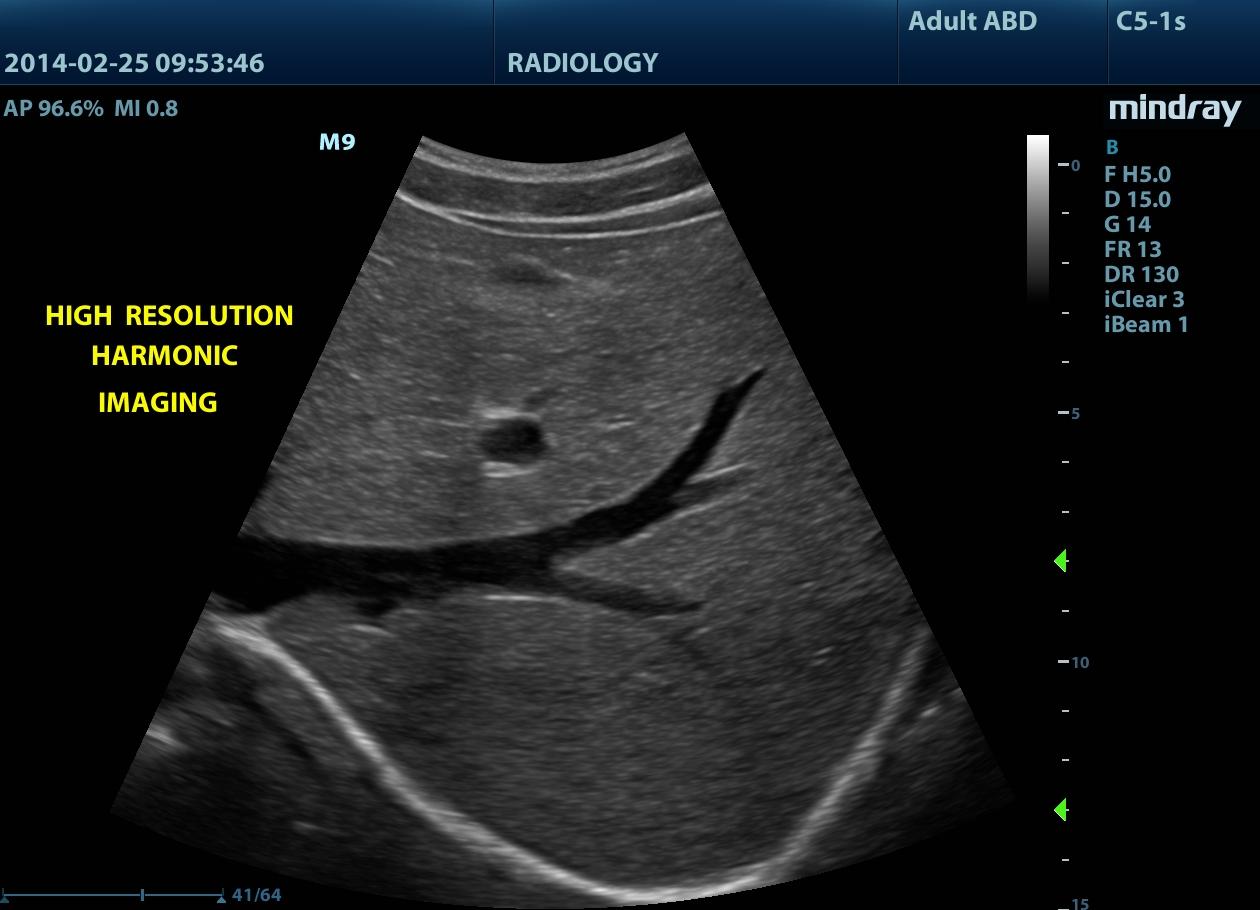

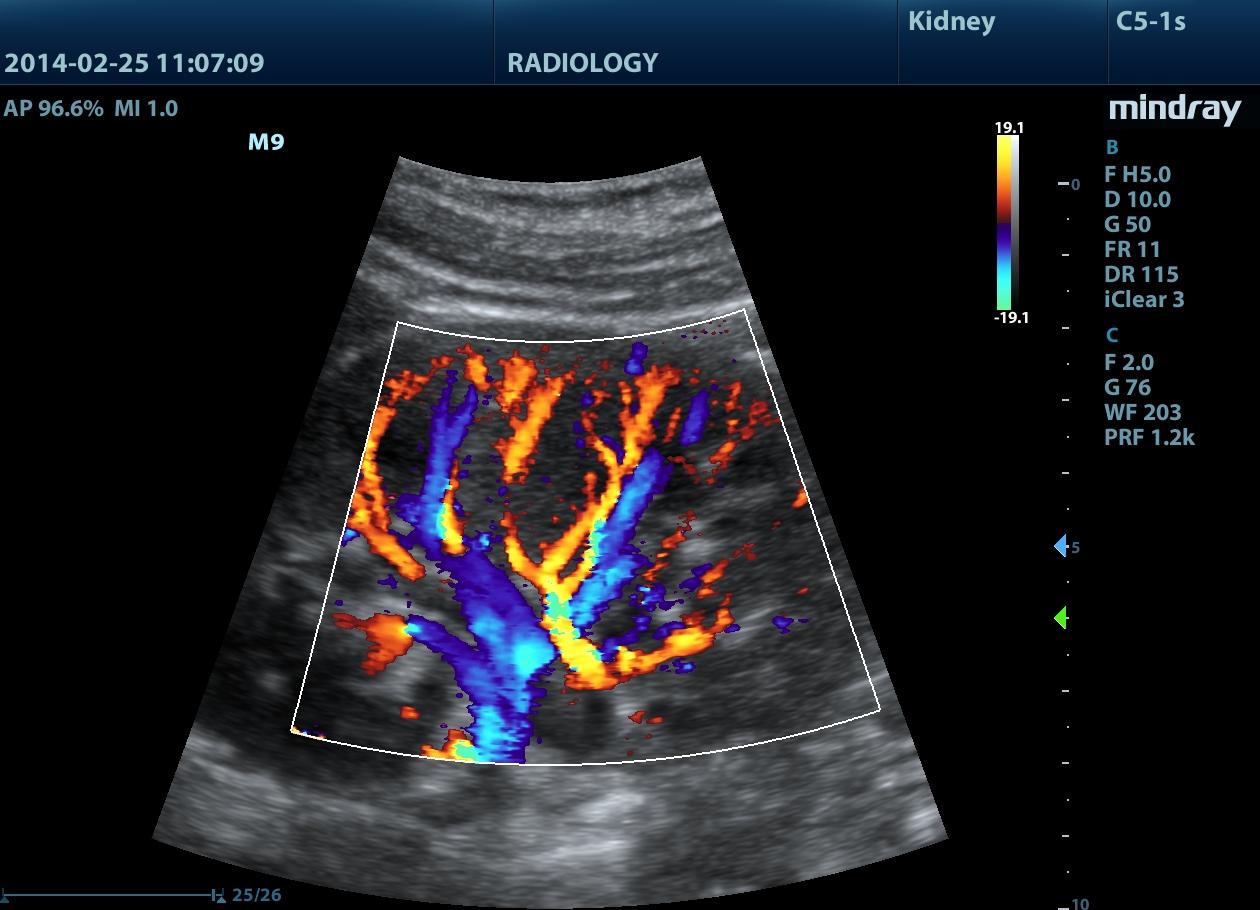

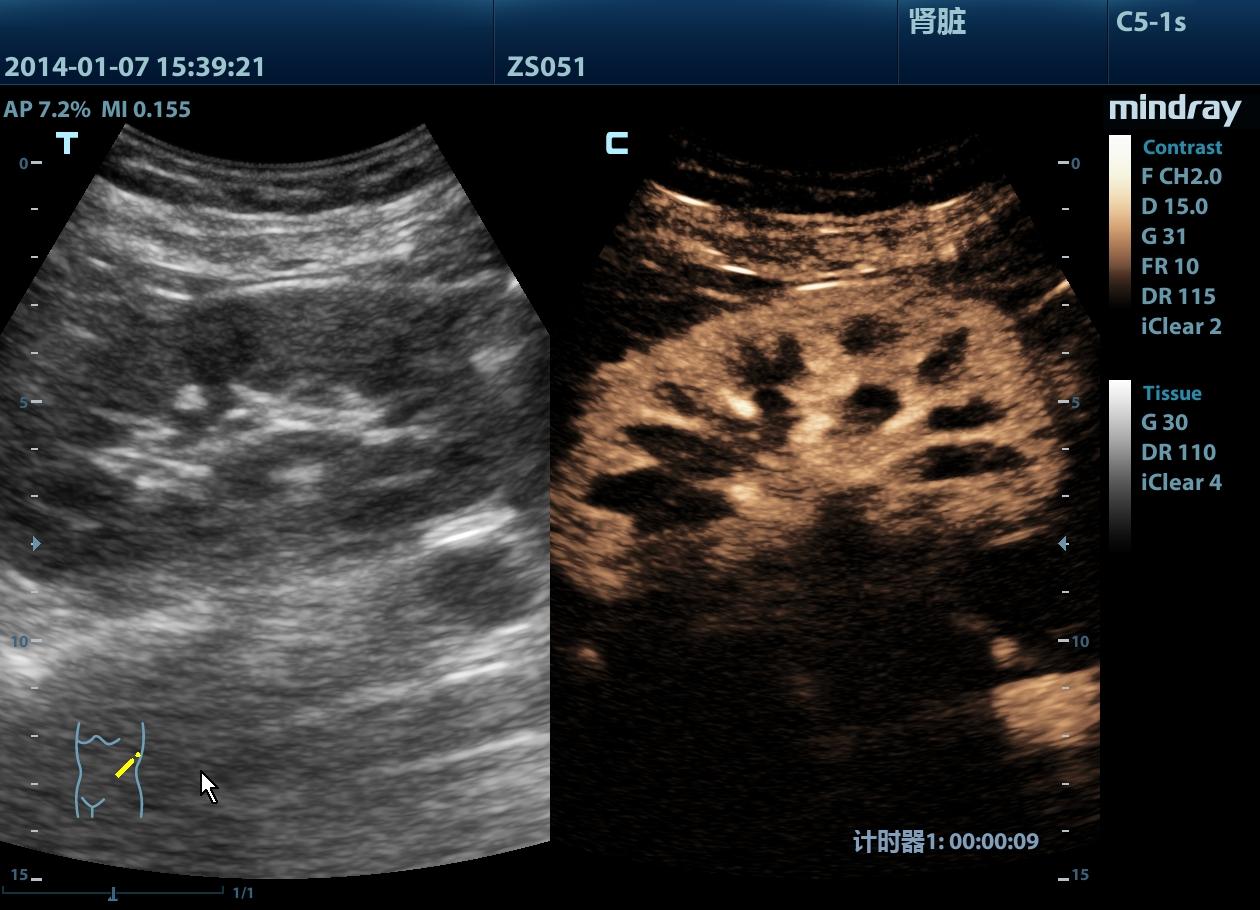

C5-1s convex array transducer. Suggested applications: Adult Abdomen, Gynecology, Obstetrics. Bandwidth: 1.4-5.1 MHz. Needle guide bracket: NGB-022

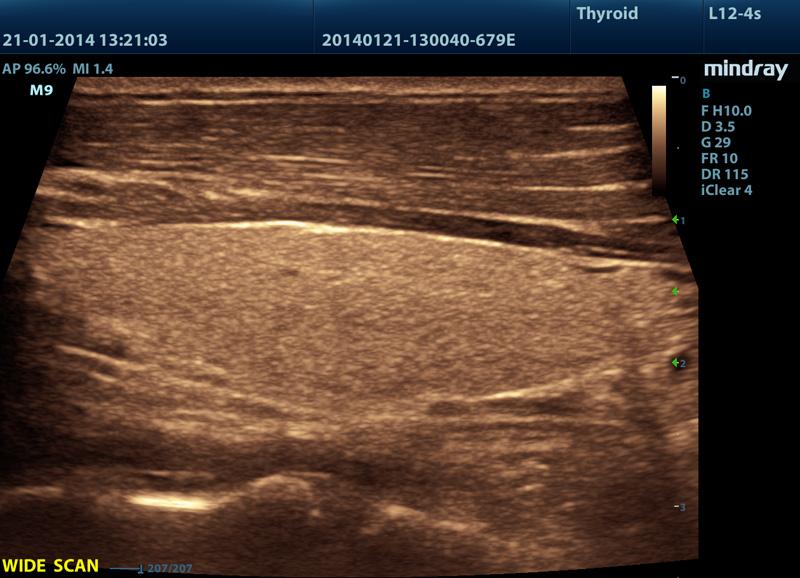

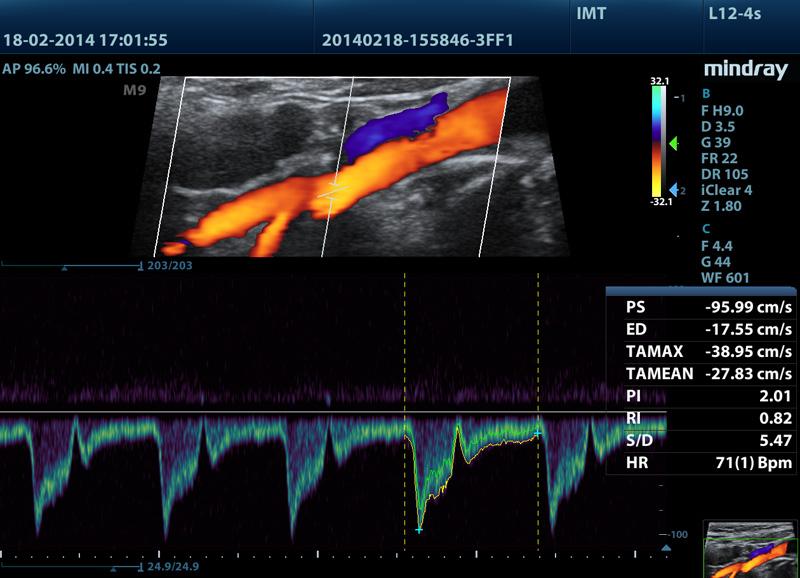

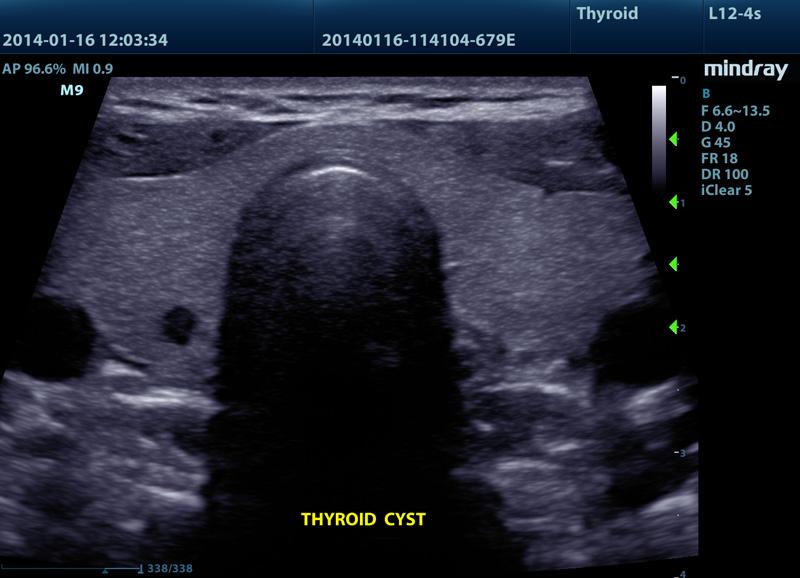

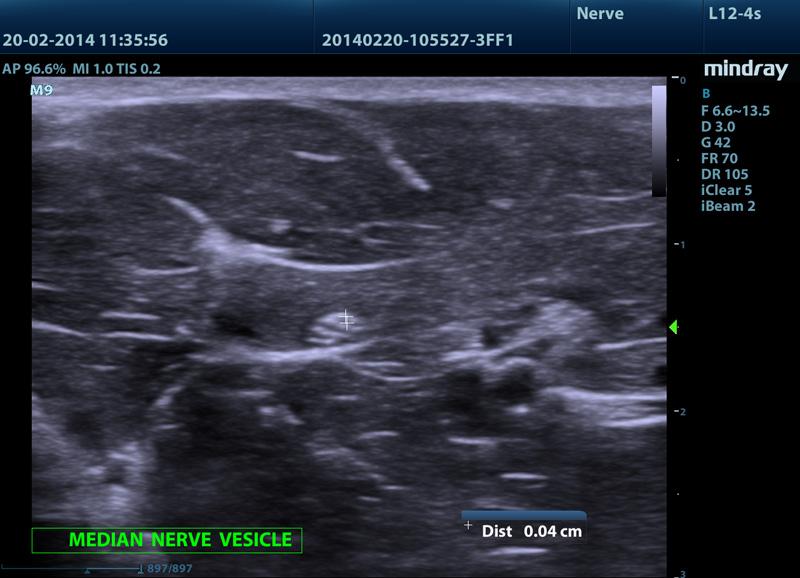

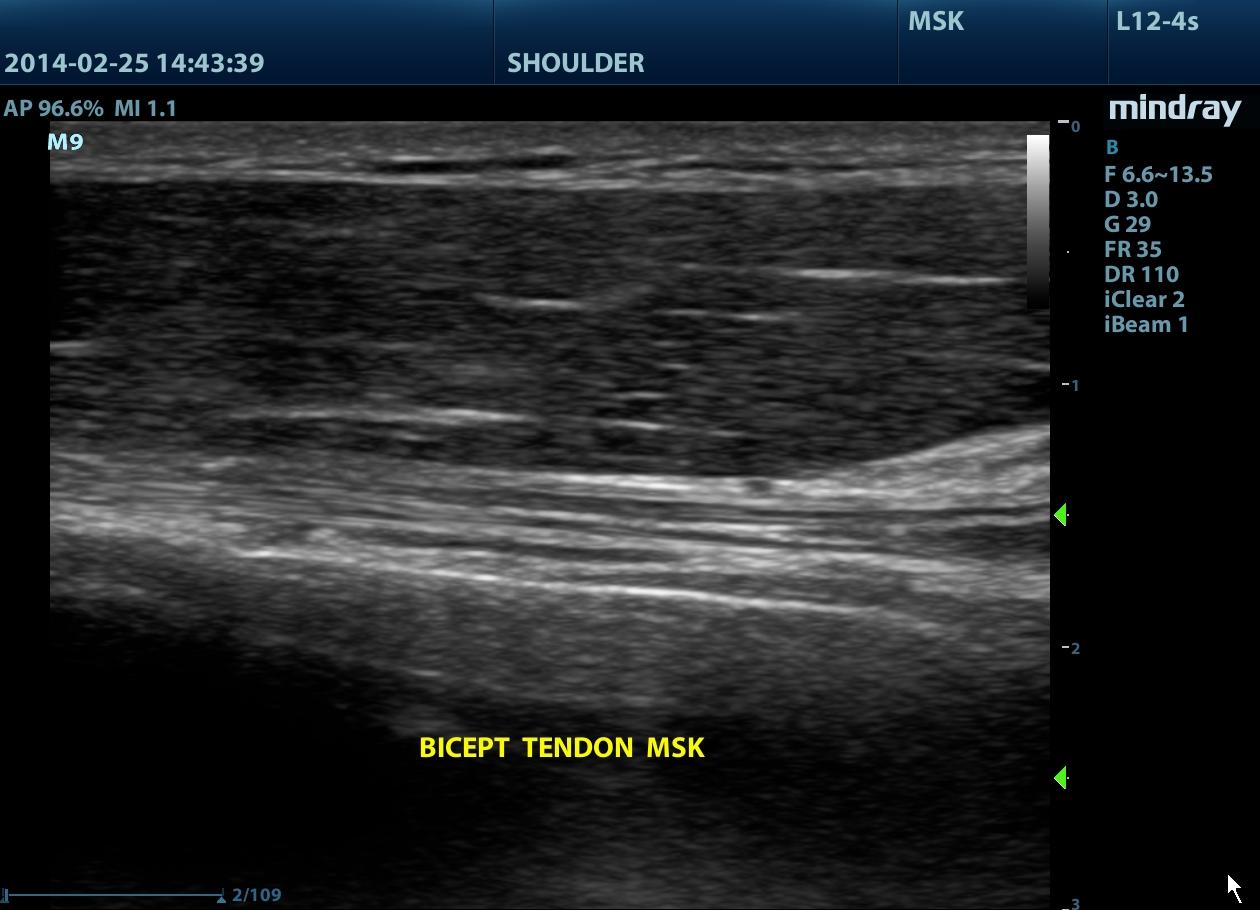

L12-4s linear array transducer. Suggested applications: Small parts, Vascular, Pediatrics, Superficial, Musculoskeletal, Neurology. Bandwidth*: 3.0-13.0 MHz. Needle guide bracket: NGB-007
L14-6Ns linear array transducer. Suggested applications: Small parts, Vascular, Pediatrics, Superficial, Musculoskeletal, Neurology. Bandwidth*: 3.5-16.0 MHz. Needle guide bracket: NGB-007

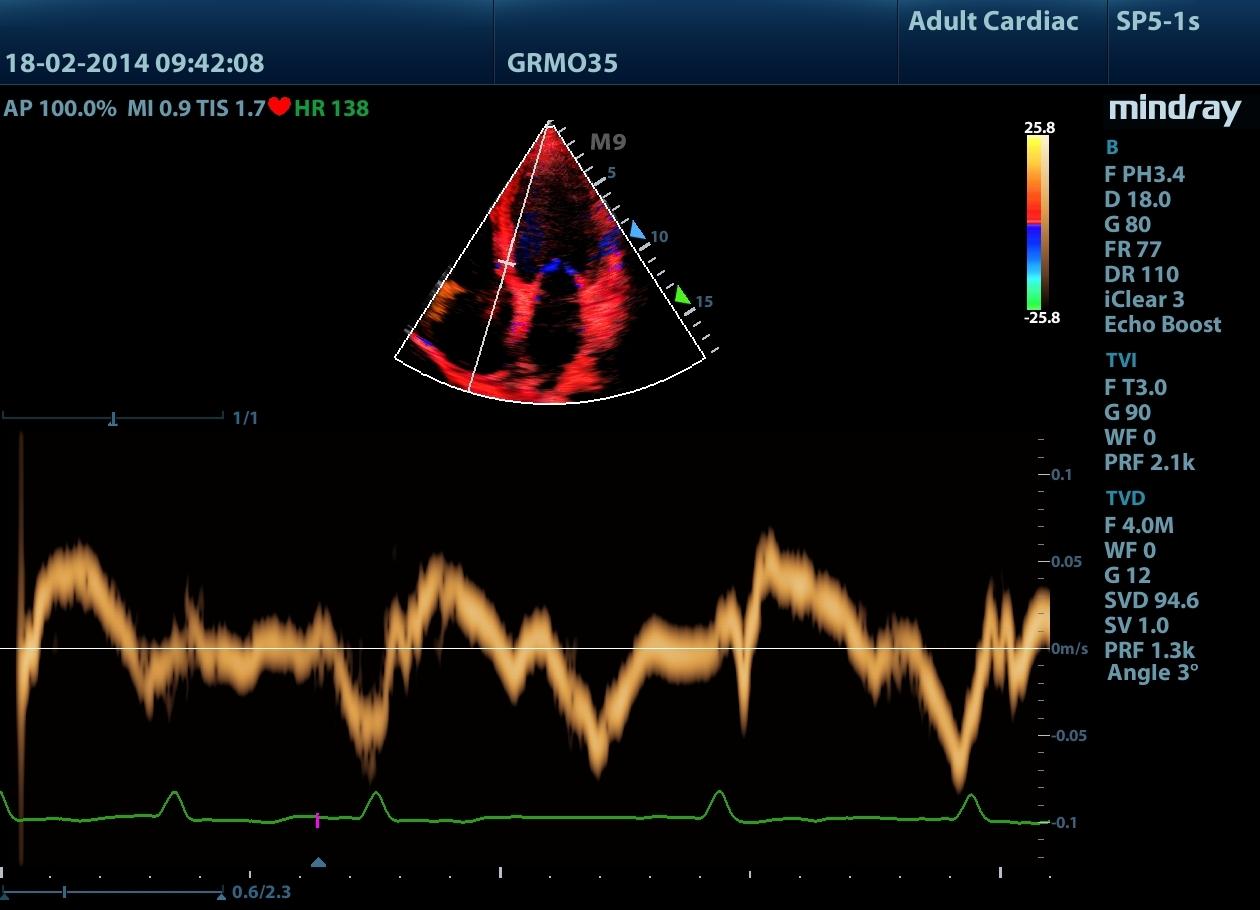

SP5-1s single crystal phased array transducer. Suggested applications: Adult Cardiac, Pediatric Cardiac Transcranial, Adult Abdomen. Bandwidth: 1.1-4.4 MHz. Needle guide bracket: NGB-011
P7-3Ts Multi Plane TEE Phased Array Transducer. Suggested application: Adult Transesophageal Echo. Bandwidth: 1.9-8.2 MHz.
P10-4s phased array transducer. Suggested applications: Neonatal Cardiac, Neonatal Abdomen, Neonatal Cranial, Pediatric Cardiac, Pediatric Abdomen. Bandwidth: 2.9-10.5 MHz.
V11-3Ws endocavity convex array transducer. Suggested applications: Gynecology, Obstetrics, Urology. Bandwidth: 3.0-11.2 MHz. Needle guide bracket: NGB-004.
CW2s Non-imaging CW, Pedoff, Transducer. Suggested applications: Transcranial, Adult Cardiac, Pediatric Cardiac. CW Frequency: 2 MHz.
CW5s Non-imaging CW, Transducer. Suggested application: Vascular. CW Frequency: 5 MHz
C11-3s micro-convex array transducer. Suggested applications: Neonatal Cranial, Neonatal Abdomen, Neonatal Cardiac, Pediatric Abdomen, Pediatric Cardiac, Vascular, Small parts, Musculoskeletal, Nerve. Bandwidth: 3.0-11.2 MHz. Needle guide bracket: NGB-018.
* Frequency bandwidth measurements represent bandwidth at +/-20dB.
